Blink-500-Pro-B2

MFR #Blink500 Pro B2  BLK #478-0052

Quick Overview

  • Wireless Audio Transceiver
  • 2x Transmitters with internal Mic
  • 2x Lavalier Microphones
  • Charging station
  • 1x Receiver with Jack output
  • Frequency: 50-18kHz
  • Internal battery - 8hours
  • USB charging

Blink-500-Pro-B2

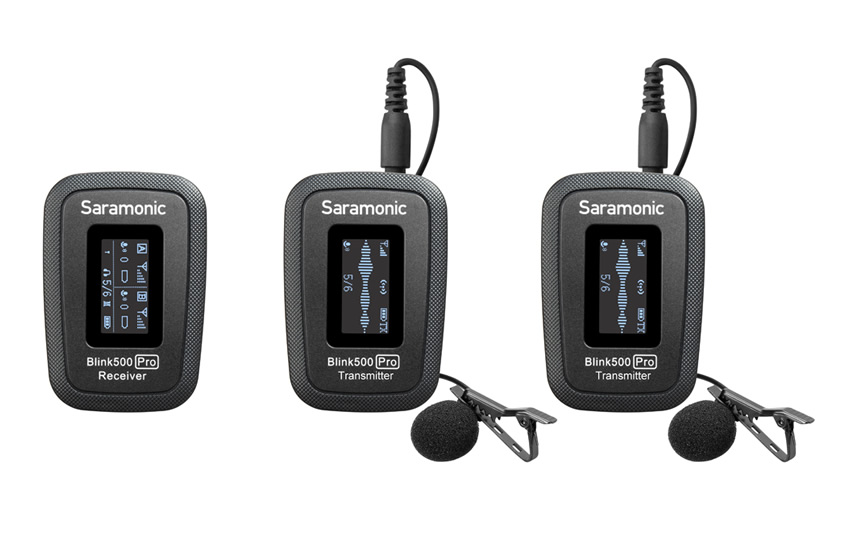

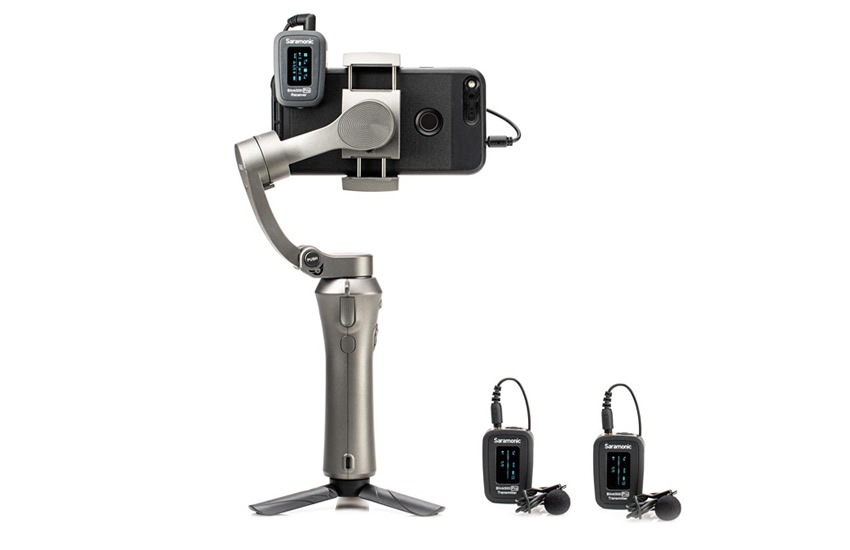

The Saramonic Blink500 Pro system are incredibly lightweight, ultracompact and easy-to-use wireless microphone system for up to 2 people. The microphone delivers exceptional, broadcast-quality sound to DSLR, Mirrorless and Video cameras, Smartphones, Tablets, Computers, and more.

The transmitters and receiver deliver a remarkable 8-hours of run time on a single charge and feature quick charging. The supplied charging case allows you to charge the transmitters and receivers anywhere and can be recharged or powered via the USB-C DC 5v port using USB-A chargers and battery packs.

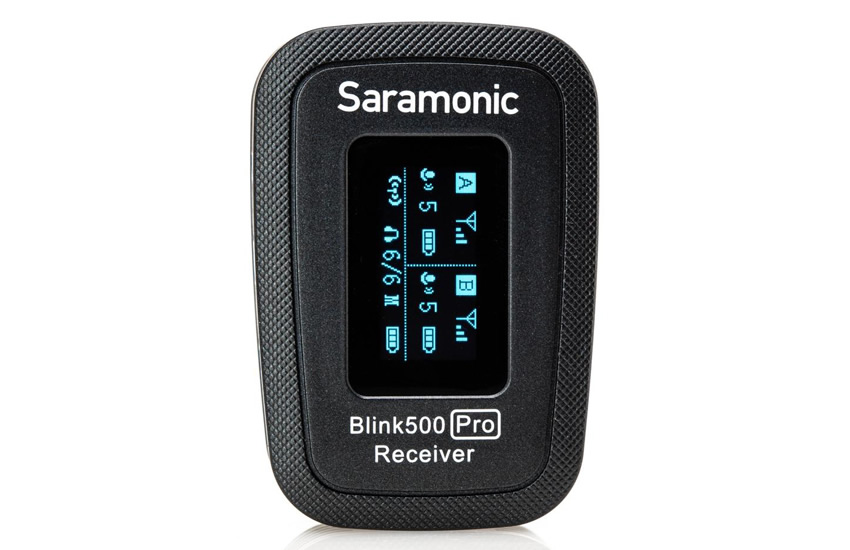

The Blink 500 Pro RX receiver has a vivid OLED display and a 3.5mm output. It also includes both TRS and TRRS output cables, allowing it to work with cameras, mobile devices, computers and any device with a 3.5mm audio input. The receivers feature a 3.5mm headphone output for real-time monitoring and selectable Mono/Stereo switch. Making the Blink 500 Pro meet the demands of professional users.

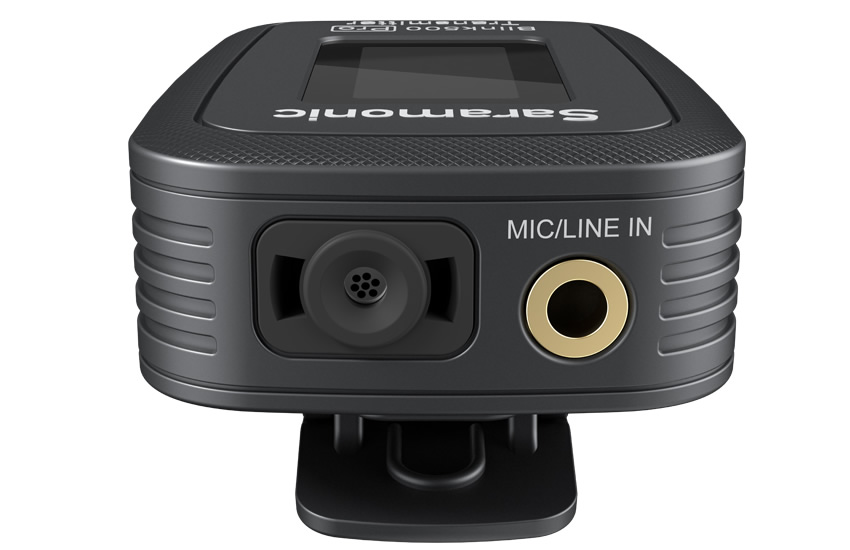

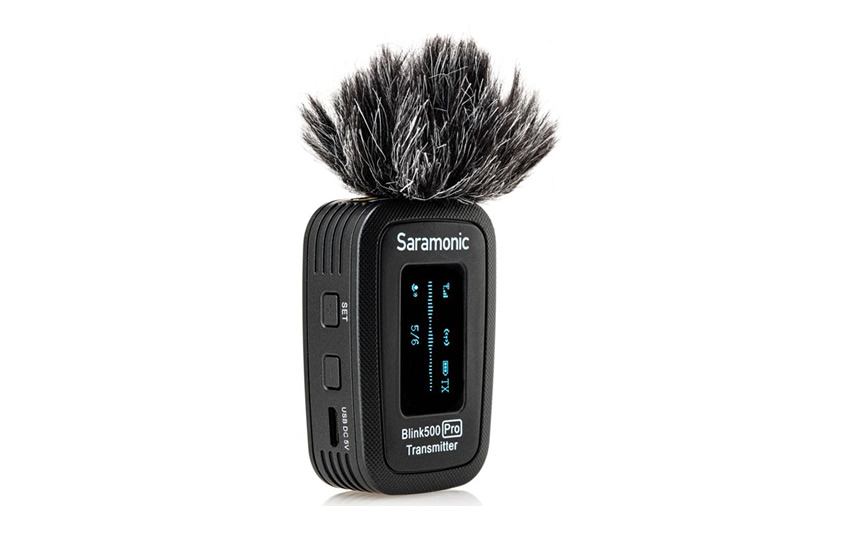

The Blink 500 Pro TX clip-on transmitter has a great sounding built-in omnidirectional microphone and it is small and light enough to clip to shirts and clothing, or you can use it as a traditional belt pack transmitter with the included SR-M1 professional lavalier microphone. It features a vivid OLED display and has 3.5mm input for microphones and line-level inputs.

  • Dual-channel stereo receiver for cameras and mobile devices
  • Portable charging case for the transmitter and receiver
  • Vivid OLED display on both transmitter and receiver
  • Selectable Mono/Stereo output mode
  • Real time headphone monitor
  • Mic input and Line input
  • 8 hours battery life on one single charge
  • One button easy paring
  • Lavalier microphone, windscreen and deadcat included in the package

Blink500 Pro RX
Transmission Type:  2.4GHz Digital Frequency
Modulation:  GFSK
Operating Range:  Up to 328′(100m)
Audio Output Connector:  3.5mm jack
Audio Output level:  –60 dBV to -20dBV
Power Requirements:  Built-in Li-ion Battery or
Micro USB DC 5V or Charging Contact
Headphone jack:  3.5mm
Built-In Battery Life:  Approx.8 hours
Antenna:  PIFA Antenna
Weight:  Approx. 32g(1.13oz)
Dimensions:  56×38×29.4mm
Operating Temperature:  0℃ to 50℃
Storage Temperature:  -20℃ to +55℃

Blink500 Pro TX
Transmission Type:  2.4GHz Digital Frequency
Modulation:  GFSK
Operating Range:  Up to 328′(100m)
RF Output Power:  10mW
Polar Pattern:  Omnidirectional
Frequency Response:  50Hz-18KHz
Maximum SPL:  Built-in Microphone:120dB SPL
Lavalier Microphone: 110dB SPL
Sensitivity:  Built-in Microphone: -39dB
Lavalier Microphone: -39dB
SNR:  >78dB
Reference audio input level:  -30~42dBv MIC input,0 dB attenuation
Power Requirements:  Built-in Li-ion Battery or
Micro USB DC 5V or Charging Contact
Built-in Battery Life:  Approx.8 hours
Antenna:  PIFA Antenna
Audio Inputs:  3.5mm TRS Lavalier Mic/Line
– in Input or Built – in Microphone

Weight:  Approx. 32g(1.13oz)
Dimensions:  56.5×38×26.1mm
Operating Temperature:  0℃ to 50℃
Storage Temperature:  -20℃ to +55℃

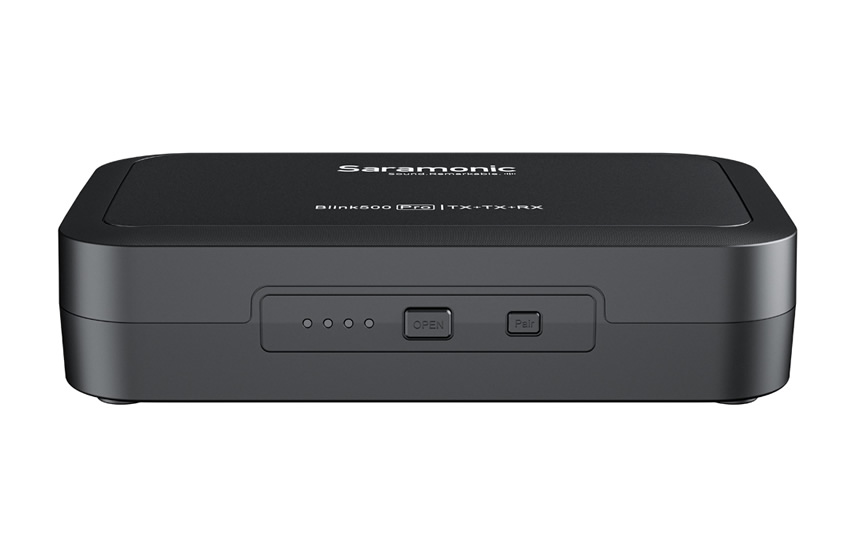

Blink500 Pro Charging Case
Power Requirements Powered by USB-C port (5V/1.5A)
Power Capacity 2000mAh
Charging Time 4 hours
Weight 268g (9.45 oz)
Dimensions 165.8×102.9×39.7 mm
Operating Temperature 0°C to 50°C
Storage Temperature –20°C to +55°C

Blink-500-Pro-B2

    STATUS

  1. Status

    New

    Type of Wireless

    Wireless Audio Transceiver SET

  2. OPTIONS-SXETIKA

  3. Options

    TRS 2TX

  4. RECEIVER FEATURES

  5. Audio outputs (Receiver)

    Jack 3.5mm Stereo

    Jack 3.5mm Phones

    No of Audio outputs (Receiver)

    1/1

    PC Connections (Receiver)

    USB-C

    Receiver Mount

    Hot Shoe

    Belt Clip

    Dimensions(Receiver)

    56x38x129mm

    Weight(Receiver)

    0.032KG

    Power (Receiver)

    Internal battery 8hours- USB connection

  6. TRANSMITTER FEATURES

  7. Audio inputs (Transmitter)

    Jack 3.5mm MIC/LINE   x1

    PC Connections (Transmitter)

    USB-C

    Transmitter Mount

    Belt clip

    Dimensions(Transmitter)

    56x38x26mm

    Weight(Transmitter)

    0.032KG

    Power (Transmitter)

    Internal battery 8hours- USB connection

  8. MICROPHONE FEATURES

  9. Microphone Type

    Lavalier

    2 built-in Microphones in X/Y Pattern

    Transducer Principle

    Condenser

    Polar Pattern

    Omni-Directional

    Mic Frequency Response

    50Hz - 18kHz

    Mic Max SPL (dB)

    110.0

    120.0

    Sensitivity (dB)

    -39.0

    Signal-to-noise-ratio

    78dB

  10. WIRELESS FEATURES

  11. Range

    100m line of sight

    Wireless Frequency

    2.4GHZ

    RF Output Power (mW)

    10.0

  12. MORE SPECIFICATIONS

  13. Extras

    Two Transmitters work simultaneously with the Receiver.
    Two Transmitters with Lavalier Microphones are included.

    Warranty

    1-Year

    Country of Origin

    China

  14. PHYSICAL

  15. Total Weight (KG)

    0.250

    Weight details

    Weight calculated for both receiver and transmitter

    Total Dimensions (WxHxD) (mm)

    220x90x110

    Dimensions Details

    Dimensions calculated for both receiver and transmitter

    Availability

    Usually in 15working days

Blink-500-Pro-B2

  • 1× Blink500 Pro RX Receiver with Built-In Clip and Camera Shoe-Mount (Integrated with OLED Display)
  • 2× Blink500 Pro TX Transmitter with OLED Display and Built-In Microphone
  • 1× Blink500 Pro B2 BOX Charging Case
  • 1× Zipper Bag
  • 1× 1’ (30.5 cm) Gold-Plated 3.5mm TRS to TRS Output Cable for Cameras
  • 1× 1’ (30.5 cm) Gold-Plated 3.5mm TRS to TRRS Output Cable for Smartphones and Tablets
  • 1× 1’ (30.5 cm) Gold-Plated USB-C to USB-A Charging Cable
  • 1× 1’ (30.5 cm) Gold-Plated Micro USB to USB-A Charging Cable
  • 2× SR-M1 Omnidirectional Lavalier Microphone
  • 2× Alligator-Style Lavalier Microphone Clip
  • 2× Foam Lavalier Windscreen
  • 2× High-Wind Fur Windscreen for TX Transmitter
  • 1× Warranty Card
  • 1× User Manual
